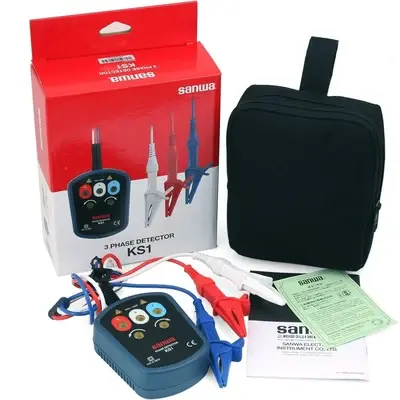

Sanwa KS1 3-Phase Detector [Contact Type]

Sanwa KS1 3-Phase Detector [Contact Type]

This instrument is a 3 phase detector that allows you to determine the open phase and rotating direction.

Large size alligator clips
Magnets on the back of the main unit allow it to be fixed on a distribution board and other metallic

SPECIFICATIONS:

Measurement	Open Phase and Phase Rotation Detection
Voltage range	3 Phase AC100 to 500 V
Frequency	45 to 70 Hz
Time limit	AC110V: Continuous AC220V: 3 hours AC480V: 12 minutes
Safey standards	IEC61010-1 CATⅢ 500V IEC61326、IEC61010-031
Size/Mass	102(H)×78(W)×32.5(D)mm / approx. 212 grams
Cord length	Approx. 0.6 m
Accessories	Carrying pouch, instruction manual x 1
