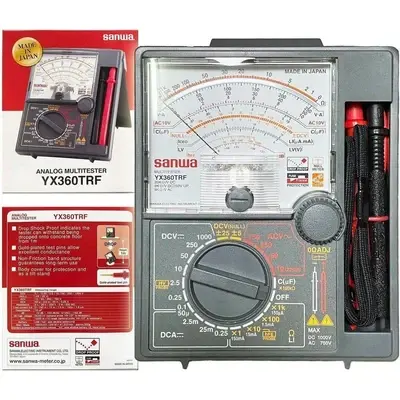

Sanwa YX360TRF Analog Multi Tester / Multimeter

Sanwa YX360TRF Analog Multi Tester / Multimeter
SKU
YX360TRF
Brand
Sanwa
Type
Analog Multimeter
Price
₱1,950.00
Availability
In stock

Professional-grade analog multimeter designed for accurate electrical measurement and durability.

The Sanwa YX360TRF Analog Multi Tester / Multimeter is a trusted measuring instrument made in Japan, widely used by technicians, electricians, and electronics professionals. Known for its drop shock-proof construction and stable analog readings, this multimeter is designed for precise measurement across a wide range of electrical parameters.

Key Benefits

  • Original Sanwa analog multimeter made in Japan
  • Drop shock-proof meter design for field and workshop use
  • Null (zero center) meter for DC voltage measurement
  • High resistance measurement up to 200MΩ with low voltage
  • Protective body cover for improved durability
  • Supports capacitance, dB, and load current measurement

Product Overview

The Sanwa YX360TRF is designed for professionals who prefer the reliability and visibility of analog measurement. Its clear needle movement allows easy observation of fluctuating signals, making it ideal for troubleshooting, testing, and maintenance work.

With a wide measuring range and compatibility with optional probes, this analog multimeter supports advanced electrical diagnostics in electronics servicing, electrical installation, and equipment maintenance environments.

Technical Specifications

YX360TRF Measuring range Accuracy
DCV 0.1V (20kΩ / V) ±5% of full scale
(NULL) 0.25 / 2.5 / 10 / 50 (20kΩ / V) / 250 / 1000V(9kΩ / V) ±3% of full scale
±5 / 25V (40kΩ / V) ±5% of full scale
ACV 10 / 50 / 250 / 750V (9kΩ / V) ±4% of full scale
Resistance 2k / 20k / 200k / 2MΩ (X1 / X10 / X100 / X1k) ±3% of arc
200MΩ (X100k) ±5% of arc
Load current (LI) 0～150m / 15m / 1.5m / 150μ / 1.5μA
Capacitance 10μF *2
dB -10dB～+22dB (for 10VAC) ～+62dB -
DC high voltage DC25kV (optional probe "HV-10T" is necessary) -
hFE 1000 at ×10 range (optional probe "HFE-6T" is necessary) -
Battery R6 (IEC) or UM-3(1.5V)×2
Fuse φ5.2×20mm (250V / 0.5A)
Size / Mass H159.5×W129×D41.5mm / approx. 320g
Standard accessories Instruction manual, Hand strap
The value in bracket at DCV and ACV is input resistance.
*1 Not including the resistance of fuse.
*2 Pointer indication of the maximum move by charged current in the capacitor

Standard Accessories

  • Instruction manual
  • Hand strap

Optional Accessories (Sold Separately)

  • hFE Probe (HFE-6T)
  • Clip adapters (CL-11, CL-15a, CL-DG3a, TL-8IC)
  • High voltage probe (HV-10T)
