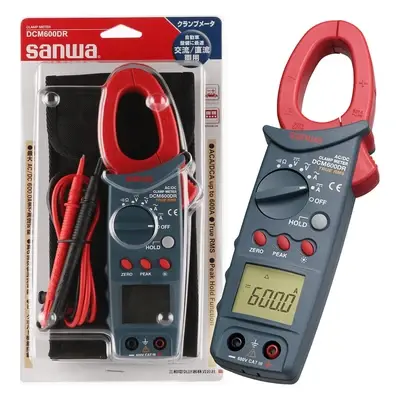

Sanwa DCM600DR Digital Clamp Meter / Tester [AC/DC 600A] True RMS

Sanwa DCM600DR Digital Clamp Meter / Tester [AC/DC 600A] True RMS
SKU
DCM600DR
Brand
Sanwa
Type
Multi Tester
Price
₱17,445.00
Availability
In stock

Sanwa DCM600DR Digital Clamp Meter / Tester [AC/DC 600A] True RMS
Suitable for maintenance of vehicle, hybrid vehicle, EV & DMM functions

  • AC/DC current measurable max. 600A
  • Peak hold (Interval: 1ms)
  • Auto power save (30min./Cancelable)
  • ORIGINAL 100% Genuine Beware of Fake

This insturment is an AC/DC Clamp meter/digital multimeter of the RMS value response type, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V.
It is suitable for current and voltage measurements of low voltage circuitry, electric equipment and power supply facilities.

Function Measuring range Best accuracy Resolution Input impedance
DCA 60/600A ±(2%+5) 0.01A
ACA 60/600A ±(2%+5) 0.01A
DCV 600V ±(1%+2) 0.1V 1MΩ
ACV 600V ±(1.2%+5) 0.1V
Resistance 999.9Ω ±(1%+7) 0.1Ω
Continuity Buzzer sounds at less than 40Ω Open voltage: approx. 2.9V
Sampling rate 3 times/sec.
Bandwidth 50-500Hz
Display 6000
Clamp diameter/Conductor size Φ30mm/10×50mm
Battery LR03×2
Battery life Approx. 40 hrs. (Backlight off)
Size/Mass H208×W69×D38mm/Approx. 260g
Safety standards IEC61010 CAT.Ⅲ600V

In the peak hold mode, the measuring range is fixed at 600A.
