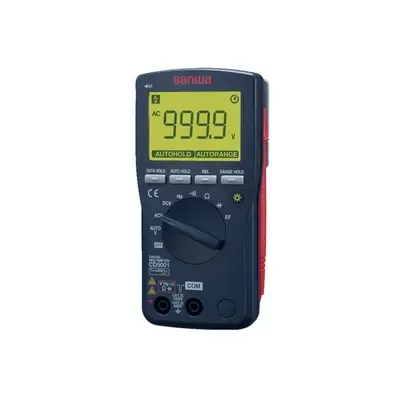

Sanwa CD5001 Digital Multimeter with True RMS and EF Sensing

Sanwa CD5001 Digital Multimeter with True RMS and EF Sensing
The all-new SANWA CD5001 is a professional grade, true RMS digital multimeter designed for precise and reliable measurements in low-voltage electrical work.

• True RMS Accuracy: Delivers precise readings for both sinusoidal and non-sinusoidal signals.
• Full 4-Digit 9999 Count Display: Provides high-resolution measurements.
• EF (Electric Field) Sensing: Detects electromagnetic fields for enhanced troubleshooting.
• AUTO V Function: Automatically identifies AC or DC voltage for seamless operation.
• Auto Hold Function: Stabilized measurements are held automatically for easy recording.
• User-Friendly Design: Large, backlit display for readability and a lightweight, ergonomic build for comfort.
• Auto Power Off: Conserves battery life by shutting down after 30 minutes of inactivity, with an option to disable.
  SPECIFICATIONS:

  CD5001
  Function	Measuring Range	Accuracy	Resolution	Input Impedance
  DCV	999.9m / 9.999 / 99.99 / 999.9V	±(0.5%+2)	0.1mV	10MΩ ~ 11MΩ
  ACV	999.9m / 9.999 / 99.99 / 999.9V	±(1.0%+5)	0.001V	10MΩ ~ 11MΩ
  Resistance	999.9 / 9.999k / 99.99k / 999.9k / 9.999M / 99.99MΩ	±(0.5%+5)	0.1Ω
  Capacitance	999.9n / 9.999μ / 99.99μ / 999.9μ / 9.999m / 99.99mF	±(5%+5)	0.1nF
  Frequency	9.999 / 99.99 / 999.9 / 9.999k / 99.99kHz	±(0.1%+5)	0.001Hz
  Continuity	Buzzer sounds at 30 to 70Ω or less. Open voltage: approx. 0.6V
  EF Detection	Detects ACV and EF of approx. 80V or more
