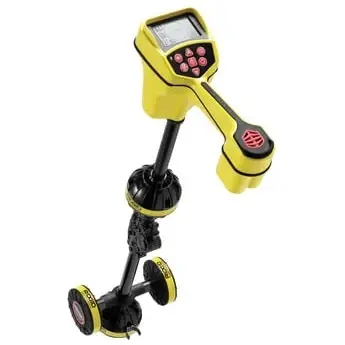

Ridgid SR-20 Locator with ST-305 Transmitter & C Clamp Kit

Ridgid SR-20 Locator with ST-305 Transmitter & C Clamp Kit
SKU
SR-20-46918
Brand
Ridgid
Type
Utility Locator
Price
₱980,000.00
Availability
In stock

Ridgid SeekTech SR-20 Locator (Line,Pipe,Sonde)

A lightweight yet rugged receiver that provides all the information needed for faster, more accurate locates.

  • Target line and guidance arrows quickly identify distortion.
  • Proximity signal and signal strength help work through difficult locates.
  • Trace any frequency from 10 Hz to 35 kHz.

Specifications

Active Line Trace Frequencies * 128 Hz, 1 kHz, 8 kHz and 33 kHz.
Passive Power Trace 50 Hz, 60 Hz, <4 kHz Broadband.
Passive Radio Trace 4 kHz-15 kHz, 15 kHz-36 kHz.
Sonde Frequencies * 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz.
Power Source 4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional).
Battery Life Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours.
Weight 3.5 lbs. (1.6 kg).
Meets FCC Class A and EN 55022 Class A requirements.
* 30 user definable frequencies can be set from 10 Hz to 35 kHz.

Ordering Information
CATALOG NUMBER DESCRIPTION Price
21893 SeekTech SR-20 Line Locator 199,250.00
46918 KIT: SR-20 + ST305 + 4” CLAMP 490,000.00
CATALOG NUMBER DESCRIPTION Price
20973 SeekTech 4” (100 mm) Inductive Signal Clamp 40,400.00
21898 SeekTech ST-305 Transmitter 72,350.00
22173 SR-20/SR-24 Case 11,950.00
