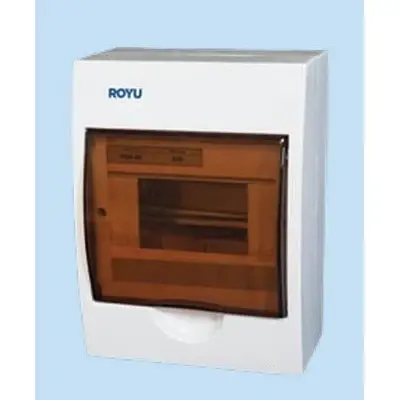

Royu Polycarbonate Distribution Box Surface-Mounted 6 Modules
- SKU
- RDB-6S
- Brand
- Royu
- Type
- Distribution Box
- Price
- ₱500.00
- Availability
- In stock
Royu Surface Mounted Type Thermoplastic distribution Box
- Polycarbonate (Door and Panel)
- ABS Material(Body)
| item Code | RDB-4S | RDB-6S | RDB-8S | RDB-12S | RDF-18S | |||||
| Modules | 4 Modules | 6 Modules | 8 Modules | 12 Modules | 18 Modules | |||||
| No. of Poles | 1P | 2P | 1P | 2PP | 1P | 2P | 1P | 2P | 1P | 2P |
| 63 Ampere Frame (1P=1Module) | 4 | 2 | 6 | 3 | 8 | 4 | 12 | 6 | 18 | 9 |
| 125 Ampere Frame (1P=1.5Module) | 2 | 1 | 4 | 2 | 5 | 2 | 8 | 4 | 12 | 6 |
| Dimensions(mm) | 112X200X83 | 149X200X98 | 186X201X98 | 258X200X98 | 401 x253x98x365 | |||||
| Price | 430 | 500.00 | 580 | 850.00 | 1,300.00 | |||||
