Ridgid 542 Quick Opening Bolt Die Head LH/RH 1-1/8"-2" for 1224

Ridgid 542 Quick Opening Bolt Die Head LH/RH 1-1/8"-2" for 1224
SKU
631581241415-9
Brand
Ridgid
Type
Die Head
Price
₱80,200.00
Availability
In stock

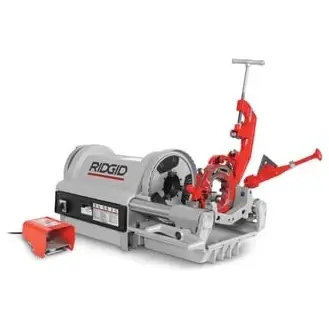

Ridgid 1224 Pipe Threading Machine

The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

  • An induction motor helps minimize noise.
  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
  • 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
  • Constant and proper lubrication of dies and workpiece with through-head oiling.

Specifications

Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4"-2" (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head
CATALOG NUMBER MODEL NO. DESCRIPTION DIE HEAD VOLTAGE (V) POWER WEIGHT (kg) Price
26097 1224 1/4" - 4" NPT Hammer Chuck Machine 711/714 230 1-1/2 HP 231 820,150.00


Stands

CATALOG NUMBER MODEL NO. DESCRIPTION Price
22563 - Steel Cabinet (200A) 35,300.00
92457 100A 100A Universal Leg & Tray Stand 34,000.00
92462 150A 150A Universal Wheel & Tray Stand 60,350.00
92467 200A 200A Universal Wheel & Cabinet Stand 85,850.00


Die Heads

CATALOG NUMBER MODEL NO. DESCRIPTION CAPACITY
Inch 		Price
26132 711 711 SO Universal Right Hand Dies 1/4 - 2 66,300.00
26142 713 713 1/4" - 2" NPT 1224 Die Head, Quick-Opening, LH 1/4 - 2 50,650.00
26152 714 714 SO Receding Right Hand Dies 2 1/2 - 4 113,200.00
26162 541 541 1/4" - 1" Bolt 1224 Die Head, Quick-Opening, RH/LH 1/4 - 1 37,650.00
26167 542 542 1-1/8" - 2" Bolt 1224 Die Head, Quick-Opening, RH/LH 1 1/8 - 2 40,100.00
55447 725 725 2-1/2” - 4” Cut Grooving Die Head 2 1/2 - 4 80,150.00
55452 766 766 Blade Type Cutter 3/4 - 4 139,050.00
57492 - 4" Grooving Die Set * - 25,650.00
57497 - 2 1/2"-3 1/2" Grooving Die Set * 2 1/2 - 3 1/2 25,650.00
57502 - 4" Grooving Bit Only * - 13,450.00
57507 - 2 1/2"-3 1/2" Grooving Bit only * - 12,950.00
58712 - Tool Bit - 12,950.00


Pipe Dies

CATALOG NUMBER DESCRIPTION CAPACITY
Inch 		Price
26192 Dies. 1224 2 - 1/2" - 4 NPT HS 2 1/2 - 4 21,500.00
31827 1224 H.S. NPT Dies for Plastic-Coated Pipe 2 1/2 - 4 22,150.00
32237 1224 H.S. Dies NPT for PVC 2 1/2 - 4 20,200.00
33057 1224 H.S. Dies NPT for Stainless Steel 2 1/2 - 4 20,200.00
33072 1224 45˚ Beveling Dies 2 1/2 - 4 20,900.00
33077 1224 37 1⁄2˚ Beveling Dies 2 1/2 - 4 20,900.00
44992 1224 Bevel Guide Set 2 1/2 - 4 14,950.00
44997 1224 37 1⁄2˚ Bevel Bit Only - 7,500.00
45002 1224 45˚ Bevel Bit Only - 7,500.00

Accessories

CATALOG NUMBER MODEL NO. DESCRIPTION Price
51005 819 819 Nipple Chuck Complete, 1/2" - 2" NPT 43,500.00
61122 840A 840A Universal Drive Shaft 37,850.00
26187 - Jaw Insert and Roll Set for PE-Coated Pipe 16,600.00
26212 764 1/4"-4" Wheel-Type Cutter 36,900.00
26217 744 1/4"-4" Blade-Type Reamer 25,450.00
26707 - Transmission Grease, 1 Lb. 1,250.00
34157 419 Nipple Chuck 2 1/2" NPT 28,350.00
34162 419 Nipple Chuck 3" NPT 28,350.00
34167 419 Nipple Chuck 4" NPT 30,650.00
34577 - Reamer Blade 1/4" - 4" 12,450.00
